PosiPatch™

Details
Category: Accessories

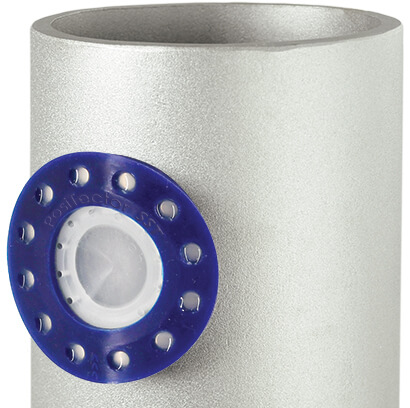

PosiPatch™ Reusable Bresle Test patch with Standard or Flexible magnetic ring
Reusable Bresle Test patch with Standard or Flexible magnetic ring

To measure salt contamination in line with ISO 8502-6,9—the Bresle Method

  • Magnetic ring attaches to steel with no residue to clean
    • Standard magnetic ring for flat surfaces and diameters > 1 m (40 in.)
    • Flexible magnetic ring for ID/OD diameters > 10 cm (4 in.)†
  • Automatic air removal through a watertight, air permeable membrane
  • No sharps, no needles! Safe, flexible dispensing tip mates with PosiPatch
  • Comparable price to latex patches
  • Reusable patent-pending PosiPatch saves time and money
  • Easy-to-use in any orientation

    • † Flexible magnetic ring minimum ID is 12 cm (4.5 in.)
    Test Area* 1250mm²
    Test Volume 2.5-3 ml
    Patch Diameter 44.4 mm (1.75 in.)
    Magnetic Ring Diameter 66.9 mm
    (2.6 in.)
    Background Contamination < 3mg/m²

    Five PosiPatches are included with all PosiTector SST PosiPatch Kits. These kits include everything required to begin measuring with the innovative PosiPatch. While they are reusable, PosiPatches may eventually wear out or become dirty after extensive testing. Replacement PosiPatches are also available:

    Name/Description Order Code
    PosiPatches (24) - for use with PosiTector SST PosiPatch Kits SSTPATCHP24
    PosiPatches (5) - for use with PosiTector SST PosiPatch Kits SSTPATCHP5
